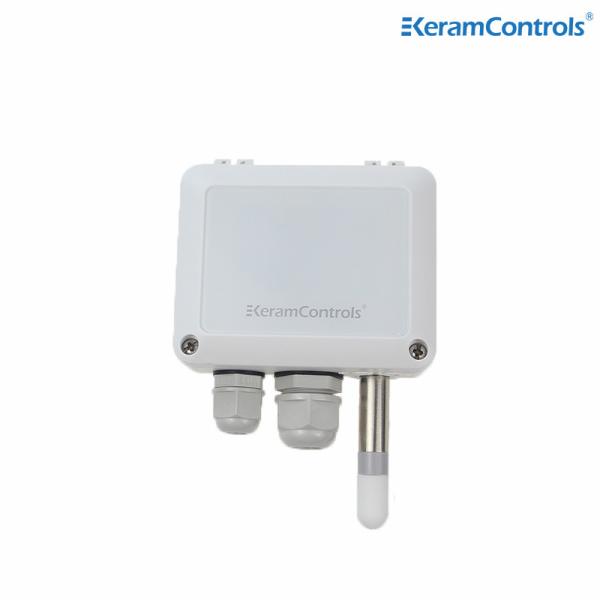

IP65 Temperature And Humidity Transmitter with LCD display

  • 1
  • 2

Brand Name : Keramcontrols

Model Number : KTH500

Certification : CE

Place of Origin : China

MOQ : 10

Price : $55-$75/pic

Payment Terms : L/C, T/T

Supply Ability : 1000pics/month

Delivery Time : 7days

Packaging Details : Carton

Operating Humidity : 0...100%RH

Temperature rangment : −35 ··· +80 °C

Temperature Range : DIP Switch

Temperature-accuracy : ±0.3°C (20-60°C)

Humidity-accuracy : ±2.5% (0-90% @25°C) / ±3% (90-100% @25°C)

Protection : IP65/NEMA4

Operating temp : -35 ··· +70°C

Contact Now

IP65 temperature and humidity transmitter

Description

The KTH510 temperature and humidity transmitter adopts a new design concept, aiming to reduce customer installation costs and usage costs. It uses a dial switch to switch the temperature range and output mode. By opening the hinged housing, customers can easily and quickly adjust the required temperature range and output mode, greatly reducing customer usage costs.

Feature

  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application

  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data

Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)

IP65 Temperature And Humidity Transmitter with LCD displayIP65 Temperature And Humidity Transmitter with LCD display

Measuring range adjustment

IP65 Temperature And Humidity Transmitter with LCD display

Ordering guide

KTH500——Output——Installation——Filter

Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)

IP65 Temperature And Humidity Transmitter with LCD display

IP65 Temperature And Humidity Transmitter with LCD displayIP65 Temperature And Humidity Transmitter with LCD display
